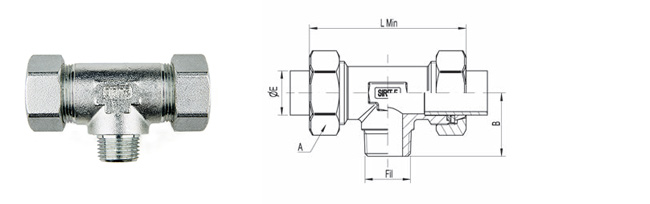

Raccordi impianti frenanti per treni

articolo .sTM

"t" di estremitÁ filetto
Ø E Fil LMin ChA B CODICE
8 1/4” 61 19 23 .STM 08 13
8 3/8” 61 19 23 .STM 08 17
10 1/4” 64 21 24 .STM 10 13
10 3/8” 64 21 24 .STM 10 17
10 1/2” 68 21 29 .STM 10 21
12 3/8” 73 25 27 .STM 12 17
12 1/2” 69 25 30 .STM 12 21
14 1/4” 75 27 27 .STM 14 13
14 3/8” 75 27 27 .STM 14 17
14 1/2” 77 27 29 .STM 14 21
14 3/4” 78 27 30 .STM 14 27
15 3/8” 71 27 29 .STM 15 17
15 1/2” 71 27 29 .STM 15 21
16 3/8” 71 29 29 .STM 16 17
16 1/2” 72 29 30 .STM 16 21
16 3/4” 72 29 30 .STM 16 27
18 1/2” 76 31 30 .STM 18 21
18 3/4” 77 31 33 .STM 18 27
20 1/2” 80 33 33 .STM 20 21
20 3/4” 80 33 35 .STM 20 27
22 1/2” 80 37 35 .STM 22 21
22 3/4” 81 37 35 .STM 22 27
25 3/4” 88 42 35 .STM 25 27
25 1” 88 42 35 .STM 25 34
30 1/2” 98 47 36 .STM 30 21
30 3/4” 99 47 38 .STM 30 27
30 1” 99 47 47 .STM 30 34
32 1/2” 99 50 39 .STM 32 21
32 3/4” 100 50 40 .STM 32 27
32 1” 100 50 42 .STM 32 34
35 1/2” 103 52 41 .STM 35 21
35 3/4” 103 52 41 .STM 35 27
35 1” 103 52 42 .STM 35 34
42 1/2” 114 64 45 .STM 42 21
42 3/4” 114 64 47 .STM 42 27
42 1” 114 64 47 .STM 42 34
42 1 1/4” 115 64 50 .STM 42 42
42 1 1/2” 115 64 50 .STM 42 49
45 1/2” 114 69 45 .STM 45 21
45 3/4” 115 69 46 .STM 45 27
45 1” 114 69 46 .STM 45 34
45 1 1/4” 115 69 47 .STM 45 42
45 1 1/2” 115 69 50 .STM 45 49
50 1 1/2” 140 72 52 .STM 50 49
54 2” 143 75 52 .STM 54 48
1/4” 1/4” 73 27 27 .STM 56 13
3/8” 3/8” 74 30 27 .STM 60 17
1/2” 1/2” 78 37 33 .STM 62 21
3/4” 3/4” 84 43 33 .STM 69 27
1” 1” 102 52 41 .STM 90 34
1 1/4” 1 1/4” 116 64 50 .STM 93 42
1 1/2” 1 1/2” 123 69 51 .STM 97 49
2” 2” 143 82 52 .STM 95 48
