Фитинг тормозных систем для поездов
Артикул .sti

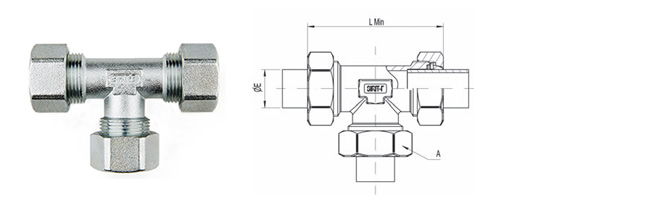

ТРОЙНИКОВАЯ ПРОМЕЖУТОЧНАЯ МУФТА
| Ø E | LMin | ChA | КОД |
|---|---|---|---|
| 6 | 29 | 18 | .STI 06 00 |
| 8 | 31 | 19 | .STI 08 00 |
| 10 | 32,5 | 21 | .STI 10 00 |
| 12 | 36 | 25 | .STI 12 00 |
| 14 | 38 | 27 | .STI 14 00 |
| 15 | 35 | 27 | .STI 15 00 |
| 16 | 37,5 | 29 | .STI 16 00 |
| 18 | 40 | 31 | .STI 18 00 |
| 20 | 40 | 33 | .STI 20 00 |
| 22 | 41 | 37 | .STI 22 00 |
| 25 | 43 | 42 | .STI 25 00 |
| 28 | 43 | 43 | .STI 28 00 |
| 30 | 50 | 47 | .STI 30 00 |
| 32 | 51 | 50 | .STI 32 00 |
| 35 | 52 | 52 | .STI 35 00 |
| 38 | 57,5 | 54 | .STI 38 00 |
| 42 | 58 | 64 | .STI 42 00 |
| 45 | 63,5 | 69 | .STI 45 00 |
| 50 | 62 | 72 | .STI 50 00 |
| 54 | 70 | 75 | .STI 54 00 |
| 1/4” | 71 | 27 | .STI 56 00 |
| 3/8” | 75 | 30 | .STI 60 00 |
| 1/2” | 76 | 37 | .STI 62 00 |
| 3/4” | 85 | 43 | .STI 69 00 |
| 1” | 102 | 52 | .STI 90 00 |
| 1 1/4” | 115 | 64 | .STI 93 00 |
| 1 1/2” | 120 | 69 | .STI 97 00 |
| 2” | 145 | 82 | .STI 95 00 |
