Фитинг тормозных систем для поездов
Артикул .sri

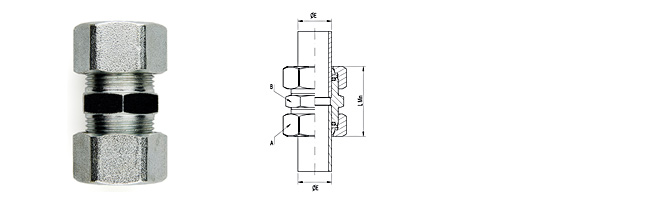

ПРЯМАЯ ПРОМЕЖУТОЧНАЯ МУФТА
| Ø E | Ø E | LMin | ChA | ChB | КОД |
|---|---|---|---|---|---|
| 6 | 6 | 40 | 18 | 15 | .SRI 06 00 |
| 8 | 8 | 42 | 19 | 17 | .SRI 08 00 |
| 10 | 10 | 43,5 | 21 | 19 | .SRI 10 00 |
| 12 | 12 | 46 | 25 | 22 | .SRI 12 00 |
| 14 | 14 | 46 | 27 | 24 | .SRI 14 00 |
| 15 | 15 | 47,5 | 27 | 25 | .SRI 15 00 |
| 16 | 16 | 48 | 29 | 26 | .SRI 16 00 |
| 18 | 18 | 51 | 31 | 28 | .SRI 18 00 |
| 20 | 20 | 50 | 33 | 30 | .SRI 20 00 |
| 22 | 22 | 48 | 37 | 34 | .SRI 22 00 |
| 25 | 25 | 50 | 42 | 38 | .SRI 25 00 |
| 28 | 28 | 51,5 | 43 | 40 | .SRI 28 00 |
| 30 | 30 | 53,5 | 47 | 45 | .SRI 30 00 |
| 32 | 32 | 53,5 | 50 | 45 | .SRI 32 00 |
| 35 | 35 | 58 | 52 | 47 | .SRI 35 00 |
| 38 | 38 | 58 | 54 | 50 | .SRI 38 00 |
| 42 | 42 | 61 | 64 | 60 | .SRI 42 00 |
| 45 | 45 | 61 | 69 | 65 | .SRI 45 00 |
| 50 | 50 | 62 | 70 | 70 | .SRI 50 00 |
| 54 | 54 | 78,5 | 75 | 70 | .SRI 54 00 |
| 1/4” | 1/4” | 45 | 28 | 24 | .SRI 56 00 |
| 3/8” | 3/8” | 45 | 30 | 27 | .SRI 60 00 |
| 1/2” | 1/2” | 50 | 37 | 34 | .SRI 62 00 |
| 3/4” | 3/4” | 52 | 43 | 40 | .SRI 69 00 |
| 1” | 1” | 58 | 52 | 47 | .SRI 90 00 |
| 1 1/4” | 1 1/4” | 60 | 64 | 60 | .SRI 93 00 |
| 1 1/2” | 1 1/2” | 66 | 70 | 65 | .SRI 97 00 |
| 2” | 2” | 80 | 82 | 80 | .SRI 95 00 |
