Raccords pour installations de freinage pour trains
Article .srp

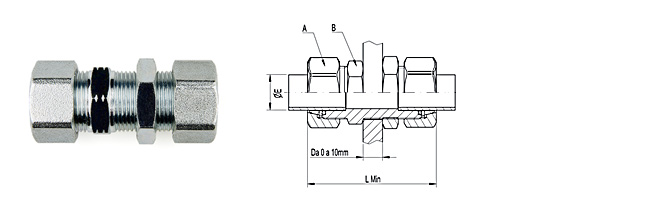

PASSAGE DE CLOISON
| Ø E | LMin | ChA | ChB | CODE |
|---|---|---|---|---|
| 6 | 56 | 18 | 15 | .SRP 06 00 |
| 8 | 58 | 19 | 17 | .SRP 08 00 |
| 10 | 59 | 21 | 19 | .SRP 10 00 |
| 12 | 63 | 25 | 22 | .SRP 12 00 |
| 14 | 69 | 27 | 24 | .SRP 14 00 |
| 15 | 66 | 27 | 25 | .SRP 15 00 |
| 16 | 66 | 29 | 26 | .SRP 16 00 |
| 18 | 66 | 31 | 28 | .SRP 18 00 |
| 20 | 69 | 33 | 30 | .SRP 20 00 |
| 22 | 70 | 37 | 34 | .SRP 22 00 |
| 25 | 75 | 42 | 38 | .SRP 25 00 |
| 28 | 69 | 43 | 40 | .SRP 28 00 |
| 30 | 75 | 47 | 45 | .SRP 30 00 |
| 32 | 75 | 50 | 45 | .SRP 32 00 |
| 35 | 83 | 52 | 47 | .SRP 35 00 |
| 38 | 83 | 54 | 50 | .SRP 38 00 |
| 42 | 83 | 64 | 60 | .SRP 42 00 |
| 45 | 88 | 69 | 65 | .SRP 45 00 |
| 50 | 86 | 70 | 70 | .SRP 50 00 |
| 54 | 94 | 75 | 70 | .SRP 54 00 |
| 1/4” | 63 | 27 | 27 | .SRP 56 00 |
| 3/8” | 63 | 30 | 27 | .SRP 60 00 |
| 1/2” | 66 | 37 | 34 | .SRP 62 00 |
| 3/4” | 68 | 43 | 40 | .SRP 69 00 |
| 1” | 77 | 52 | 47 | .SRP 90 00 |
| 1 1/4” | 80 | 64 | 60 | .SRP 93 00 |
| 1 1/2” | 83 | 69 | 65 | .SRP 97 00 |
| 2” | 97 | 82 | 80 | .SRP 95 00 |
