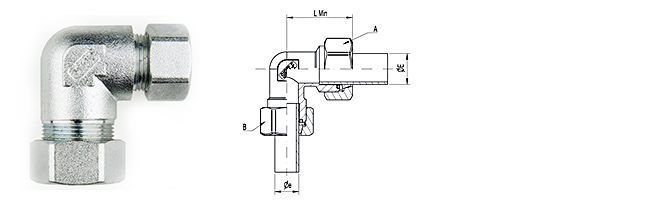

REDUZIER-WINKEL-VERSCHRAUBUNGEN
Ø E |
Ø e |
LMin |
ChA |
ChB |
CODE |
8 |
6 |
31 |
19 |
18 |
.SGR 08 06 |
10 |
8 |
32 |
21 |
19 |
.SGR 10 08 |
12 |
8 |
35 |
25 |
19 |
.SGR 12 08 |
12 |
10 |
36 |
25 |
21 |
.SGR 12 10 |
14 |
8 |
39 |
27 |
19 |
.SGR 14 08 |
14 |
10 |
39 |
27 |
21 |
.SGR 14 10 |
14 |
12 |
36 |
27 |
25 |
.SGR 14 12 |
16 |
12 |
38 |
29 |
25 |
.SGR 16 12 |
16 |
14 |
39 |
29 |
27 |
.SGR 16 14 |
18 |
12 |
39 |
31 |
25 |
.SGR 18 12 |
18 |
14 |
39 |
31 |
27 |
.SGR 18 14 |
20 |
14 |
42 |
33 |
27 |
.SGR 20 14 |
20 |
18 |
40 |
33 |
28 |
.SGR 20 18 |
22 |
18 |
41 |
37 |
31 |
.SGR 22 18 |
25 |
18 |
43 |
42 |
31 |
.SGR 25 18 |
25 |
20 |
43 |
42 |
33 |
.SGR 25 20 |
25 |
22 |
44 |
42 |
37 |
.SGR 25 22 |
28 |
20 |
42 |
43 |
33 |
.SGR 28 20 |
28 |
22 |
41 |
43 |
37 |
.SGR 28 22 |
28 |
25 |
42 |
43 |
42 |
.SGR 28 25 |
30 |
22 |
48 |
47 |
37 |
.SGR 30 22 |
30 |
25 |
49 |
47 |
42 |
.SGR 30 25 |
30 |
28 |
48 |
47 |
43 |
.SGR 30 28 |
32 |
20 |
49 |
50 |
33 |
.SGR 32 20 |
32 |
25 |
49 |
50 |
42 |
.SGR 32 25 |
32 |
30 |
50 |
50 |
47 |
.SGR 32 30 |
35 |
22 |
51 |
52 |
37 |
.SGR 35 22 |
35 |
25 |
52 |
52 |
42 |
.SGR 35 25 |
35 |
28 |
52 |
52 |
43 |
.SGR 35 28 |
38 |
22 |
53 |
54 |
37 |
.SGR 38 22 |
38 |
25 |
53 |
54 |
42 |
.SGR 38 25 |
38 |
30 |
58 |
54 |
47 |
.SGR 38 30 |
42 |
25 |
56 |
64 |
42 |
.SGR 42 25 |
42 |
28 |
55 |
64 |
43 |
.SGR 42 28 |
42 |
30 |
57 |
64 |
47 |
.SGR 42 30 |
42 |
35 |
57 |
64 |
52 |
.SGR 42 35 |
42 |
38 |
57 |
64 |
54 |
.SGR 42 38 |
45 |
30 |
58 |
69 |
47 |
.SGR 45 30 |
45 |
32 |
58 |
69 |
50 |
.SGR 45 32 |
45 |
35 |
58 |
69 |
52 |
.SGR 45 35 |
45 |
38 |
58 |
69 |
54 |
.SGR 45 38 |
3/8” |
1/4” |
30 |
30 |
27 |
.SGR 60 56 |
1/2” |
1/4” |
38 |
37 |
27 |
.SGR 62 56 |
1/2” |
3/8” |
38 |
37 |
30 |
.SGR 62 60 |
3/4” |
3/8” |
41 |
43 |
30 |
.SGR 69 60 |
3/4” |
1/2” |
43 |
43 |
37 |
.SGR 69 62 |
1” |
1/2” |
51 |
52 |
37 |
.SGR 90 62 |
1” |
3/4” |
52 |
52 |
43 |
.SGR 90 69 |
1 1/4” |
3/4” |
57 |
64 |
43 |
.SGR 93 69 |
1 1/4” |
1” |
57 |
64 |
52 |
.SGR 93 90 |
1 1/2” |
1” |
61 |
69 |
52 |
.SGR 97 90 |
1 1/2” |
1 1/4” |
62 |
69 |
64 |
.SGR 97 93 |
2” |
1 1/4” |
71 |
82 |
64 |
.SGR 95 93 |
2” |
1 1/2” |
71 |
82 |
69 |
.SGR 95 97 |
