ANSCHLÜSSE FÜR BREMSANLAGEN VON BAHNEN
Artikel .sGi

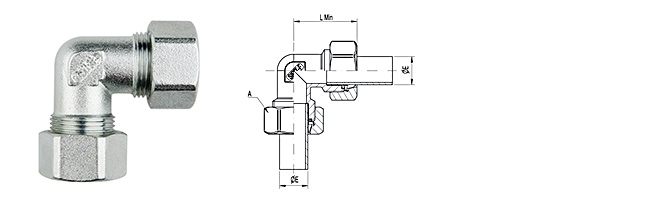

WINKEL - VERSCHRAUBUNGEN
Ø E |
Ø E |
LMin |
ChA |
CODE |
6 |
6 |
29 |
18 |
.SGI 06 00 |
8 |
8 |
31 |
19 |
.SGI 08 00 |
10 |
10 |
32,5 |
21 |
.SGI 10 00 |
12 |
12 |
36 |
25 |
SGI 12 00 |
14 |
14 |
38 |
27 |
.SGI 14 00 |
15 |
15 |
35 |
27 |
.SGI 15 00 |
16 |
16 |
37,5 |
29 |
.SGI 16 00 |
18 |
18 |
40 |
31 |
.SGI 18 00 |
20 |
20 |
40 |
33 |
.SGI 20 00 |
22 |
22 |
41 |
37 |
.SGI 22 00 |
25 |
25 |
43 |
42 |
.SGI 25 00 |
28 |
28 |
43 |
43 |
.SGI 28 00 |
30 |
30 |
50 |
47 |
.SGI 30 00 |
32 |
32 |
51 |
50 |
.SGI 32 00 |
35 |
35 |
52 |
52 |
.SGI 35 00 |
38 |
38 |
57,5 |
54 |
.SGI 38 00 |
42 |
42 |
58 |
64 |
.SGI 42 00 |
45 |
45 |
63,5 |
69 |
.SGI 45 00 |
50 |
50 |
62 |
75 |
.SGI 50 00 |
54 |
54 |
70 |
75 |
.SGI 54 00 |
1/4” |
1/4” |
36 |
27 |
.SGI 56 00 |
3/8” |
3/8” |
38 |
30 |
.SGI 60 00 |
1/2” |
1/2” |
38 |
37 |
.SGI 62 00 |
3/4” |
3/4” |
43 |
43 |
.SGI 69 00 |
1” |
1” |
43 |
52 |
.SGI 90 00 |
1 1/4” |
1 1/4” |
57 |
64 |
..SGI 93 00 |
1 1/2” |
1 1/2” |
62 |
69 |
.SGI 97 00 |
2” |
2” |
71 |
82 |
.SGI 95 00 |
